Replace your existing engine heater enclosures with PowerBay
Zpark PowerBay Core
PowerBay Core is a compact and robust insert from Zpark that enables EV charging and engine heating using existing infrastructure. Designed for installation in existing engine heater enclosures from GARO or ABB, it provides a simple and cost-effective upgrade solution. By reusing the existing enclosure, PowerBay Core can be installed without new cabling, making the upgrade both faster and more cost-effective.

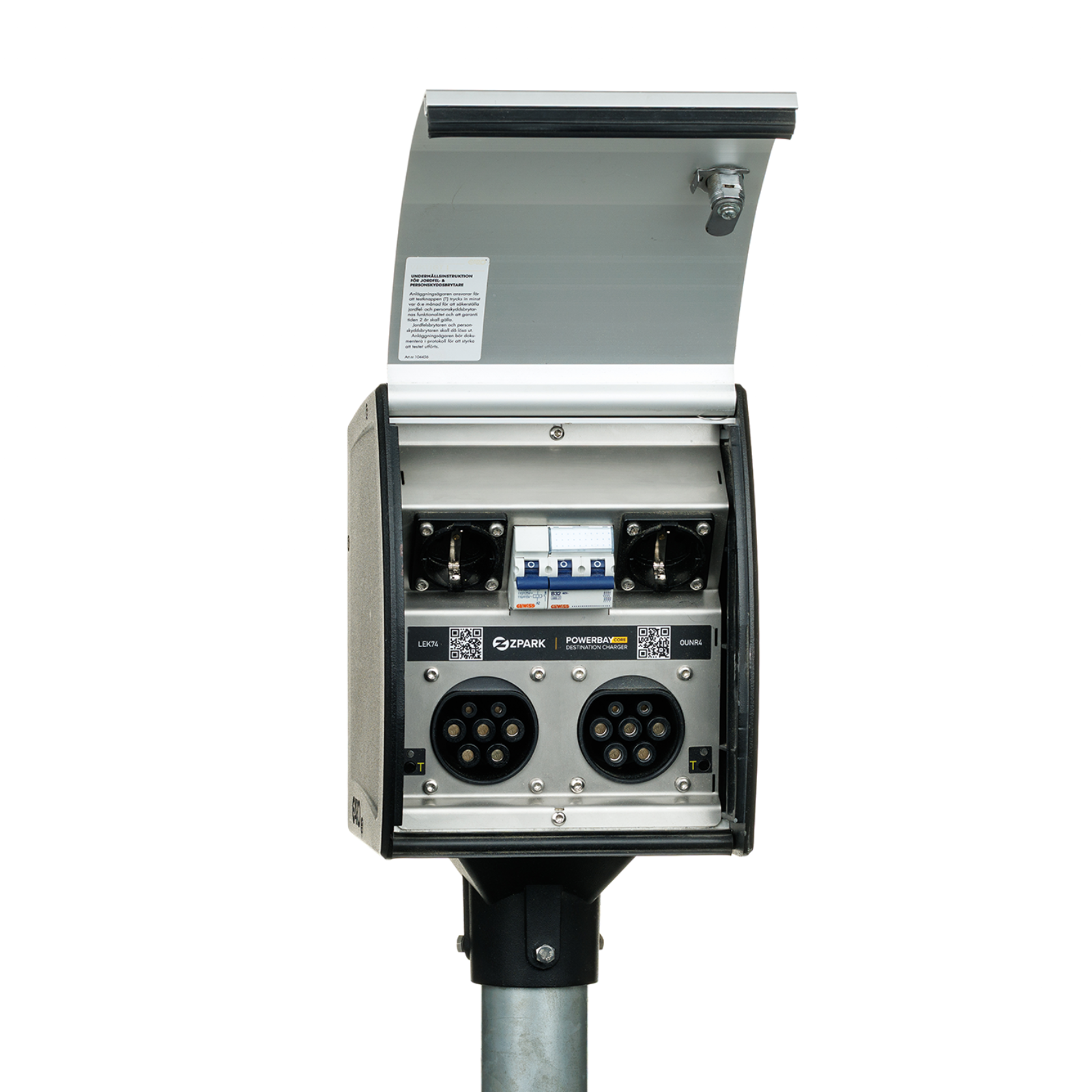

Zpark PowerBay Core M1
Get product sheet
Technical information
| Compatibility | Compatible with PN100 and P100 (GARO), Possible to integrate in other enclosures |
|---|---|
| Facility Circuit | 2.5mm² to 16mm² CU, Extension possible (max. 80A) |
| Electric Distribution System | TN-S (five-wire system) or TN-C (four-wire system) |
| Earth Fault Protection | Built-in AC/DC RCD |
| Communication | 4G/LTE, Ethernet and local LoRa with Zpark Gateway |
| Charging Detection | 2x 1.4 kW (single-phase) to 2x 11 kW (three-phase) |
| Charging Indicators | With RGB-LED |
| Load Balancer - Static & Dynamic | Enables hierarchical load balancing |
| Rated voltage | 230V/400V 50 Hz |
| Measurement | Built-in energy meter for electricity trading, Individal control and measurement per socket |
| OCPI | Achieves v2.2 |
| OCPP | Prepared for v2.0 with future software update, V1.6j |
| Fuses | 3 x 32A (22kW) |
| Socket options | 2x Schuko for engine heating and e-bikes, 2x Type2 (IEC 62196-2) |
| Identification | Zpark App |
| Temperature Range | -25°C to +40°C |
| Protection Class | IP and IK according to enclosure, Overvoltage category III |
| Standards and Approvals | IEC 60947-7, IEC 61851-1, IEC 62196-2, Meets Energy Star criteria for energy efficiency, therefore can be used for LEED certification |
Description
PowerBay Core is a compact and robust unit combining EV charging and engine heating for easy conversion of existing infrastructure. The product is delivered as an insert and is developed for installation in existing engine heater enclosures from GARO.
Included accessories
Zpark PowerBay Core M2
Get product sheet
Technical information
| Compatibility | Compatible with CW200 (ABB), Possible to integrate in other enclosures |
|---|---|
| Facility Circuit | 2.5mm² to 16mm² CU, Extension possible (max. 80A) |
| Electric Distribution System | TN-S (five-wire system) or TN-C (four-wire system) |
| Earth Fault Protection | Built-in AC/DC RCD |
| Communication | 4G/LTE, Ethernet and local LoRa with Zpark Gateway |
| Charging Detection | 2x 1.4 kW (single-phase) to 2x 11 kW (three-phase) |
| Charging Indicators | With RGB-LED |
| Load Balancer - Static & Dynamic | Enables hierarchical load balancing |
| Rated voltage | 230V/400V 50 Hz |
| Measurement | Built-in energy meter for electricity trading, Individal control and measurement per socket |
| OCPI | Achieves v2.2 |
| OCPP | Prepared for v2.0 with future software update, V1.6j |
| Fuses | 3 x 32A (22kW) |
| Socket options | 2x Schuko for engine heating and e-bikes, 2x Type2 (IEC 62196-2) |
| Identification | Zpark App |
| Temperature Range | -25°C to +40°C |
| Protection Class | IP and IK according to enclosure, Overvoltage category III |
| Standards and Approvals | IEC 60947-7, IEC 61851-1, IEC 62196-2, Meets Energy Star criteria for energy efficiency, therefore can be used for LEED certification |
Description
PowerBay Core is a compact and robust unit combining EV charging and engine heating for easy conversion of existing infrastructure. The product is delivered as an insert and is developed for installation in existing engine heater enclosures from ABB.
Included accessories
Accessories
| Title | Article number | Price | Quantity | Add to cart |
|---|---|---|---|---|
| Pole Mount | 000-013-000130 | + | ||
| Pole Mount Double | 000-013-000131 | + | ||
| Zpark Cover Kit | 000-013-000041 | + | ||
| Current Transformer Cable | 000-013-000045-AA | + | ||
| Gateway Antenna 800mm | 000-013-000036 | + | ||
| Gateway Antenna 360mm | 000-013-000035 | + | ||
| Current Transformer 16mm, 3pcs | 000-013-000031 | + | ||
| Current Transformer 24mm, 3pcs | 000-013-000033 | + | ||
| Current Transformer 36mm, 3pcs | 000-013-000034 | + | ||
| Load Balancer 12V Power Adapter | 000-013-000038 | + | ||
| Zpark Antenna | 000-013-000028 | + | ||
| HCC Cable M1/M2 | 000-013-020044 | + | ||
| Zpark Long Range Antenna | 000-013-000080 | + | ||
| M1 Markings Kit | 000-013-000061 | + | ||
| M2 Markings Kit | 000-013-020060 | + | ||
| Zpark 4G Router | 000-013-100050 | + | ||
| 230V Cable | 000-013-200003 | + | ||
| PoE Injector | 900111 | + |
Expression of Interest - Buyback of Engine Heater Posts
Trade in your existing engine heater posts and upgrade to PowerBay.
